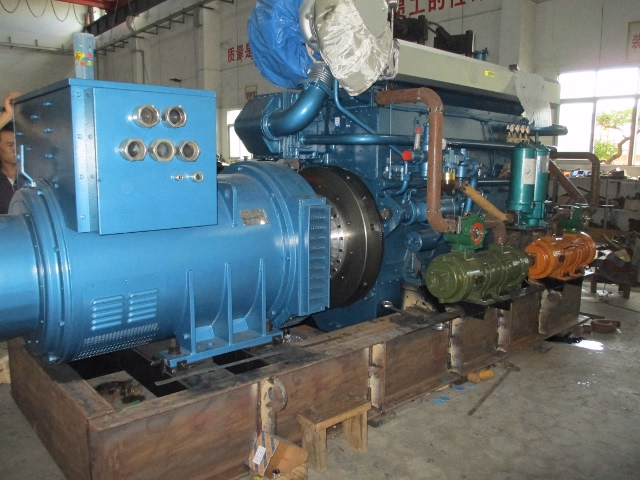

Weichai Wp10.12.13 Series 150-310kw Marine Generator with Alternator
Marine GeneratorModel: 200GFC
Brand: CY Power
Rated power: 200 KW / 250 kVA
Rated speed: 1500 r/min
Connecting method: 3 phase & 4 wire
Rated voltage: 400V
Rated current: 360A
Power factor: 0.8LAG
Dimension (L× B× H): 2540 * 918 * 1579 mm
Net weight: 2350 KG
Diesel engine
Model: WP10CD264E200 (4 stroke, Turbocharged & Intercooled, Cooling by Heat Exchanger)
Brand: WEICHAI POWER
Rated power: 240 KW
Rated speed: 1500 r/min
Generator
Model: HCM434E
Brand: Stamford
Insulation: Class H
Protection Level: IP44
| Model | Length | Width | Height |
| CCFJ150 | 2540 | 840 | 1530 |
| CCFJ170 | 2680 | 840 | 1530 |
| CCFJ200 | 2680 | 840 | 1530 |
| CCFJ240 | 2630 | 850 | 1580 |
| CCFJ270 | 2680 | 840 | 1510 |
| CCFJ310 | 2770 | 840 | 1510 |
| UNIT :mm | |||
Genset Model | Engine Model | Rated Power (kW) | Fuel Consumption at Rated Power (L/hr) | Genset Rated & Standby Output (k W / kVA) | Genset Frequency (Hz) | Genset Rated Voltage (V) & Current (A) | Genset Net Weight (KG) |
| CCFJ150 | WD10CD200E200 | 182 | 38.7 | 150/187 & 165/206 | 50 | 400 & 271 | 1800 |
| CCFJ170 | WP10CD238E200 | 216 | 43.9 | 170/212 & 187/234 | 50 | 400 & 310 | 1980 |
| CCFJ200 | WP10CD264E200 | 240 | 54.2 | 200/250 & 220/275 | 50 | 400 & 361 | 2180 |
| CCFJ240 | WP12CD317E200 | 288 | 61.9 | 240/300 & 264/330 | 50 | 400 & 426 | 2360 |
| CCFJ270 | WP13CD385E200 | 350 | 69.7 | 270/337& 297/371 | 50 | 400 & 491 | 2350 |
| CCFJ310 | WP13CD385E200 | 350 | 80.0 | 310/387 & 341/426 | 50 | 400 & 563 | 2450 |
Engine specification:
| Engine Model | SC12E460.1P2 |
| Maker | Shanghai Diesel Engine Co., Ltd |
| Rated Power | 460HP |
| Rated Speed | 1800rpm |
| Bore&Stroke | 128mm X 153mm |
| Engine Type | 4 Stroke, 4 Valve, Water cooled&Intercooled, Turbocharger |
| Displacement | 11.8L |
| Liner Type | Wet |
| Ration | 17: 1 |
| Crankshaft rotation | Anti-clockwise from flywheel size |
| Flywheel&housing | SAE1#14 |
460HP SDEC SC12E460.1P2 marine diesel engine is made by Shanghai diesel engine company Ltd, which established in the year 1947. More than 70 years history
• Designed by SDEC and AVL (Austria) by reference to the world up-to-date engine design concept that meet the demand of heavy duty commercial vehicles.
• It is a brand new 4 valve engine platform made in accordance with the SAIC motor manufacturing standard
• Characterized by safty, reliability, compact struction, good acceleration and high power.
